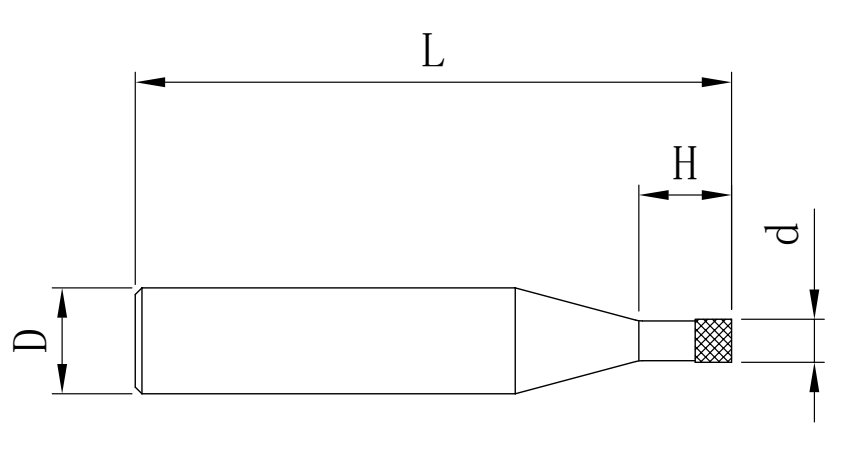

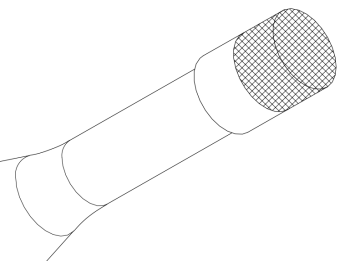

| 产品规格图例 | 外形尺寸 | 端面槽型 | 磨粒层 | |||||||||
 |  |  | ||||||||||
| 序号 | 规格型号 | 外形尺寸 | 端面槽型 | 磨粒层厚 | 磨粒粒度 | 定制粒度 | ||||||
| 刃径 d | 柄径 D | 避空 H | 总长 L | 孔径 φ | 槽宽 K | 槽深 C | 槽长 | |||||
| 1 | D6-d0.5-H3-L45-400# | 0.5 | 6 | 3 | 45 | 0.4 | 400# | 400-600# | ||||
| 2 | D6-d0.5-H4-L45-400# | 0.5 | 6 | 4 | 45 | 0.4 | 400# | 400-600# | ||||
| 3 | D6-d0.5-H5-L45-400# | 0.5 | 6 | 5 | 45 | 0.4 | 400# | 400-600# | ||||
| 4 | D6-d0.6-H3-L45-300# | 0.6 | 6 | 3 | 45 | 0.5 | 300# | 300-600# | ||||
| 5 | D6-d0.6-H5-H45-300# | 0.6 | 6 | 5 | 45 | 0.5 | 300# | 300-600# | ||||
| 6 | D6-d0.7-H3-L45-250# | 0.7 | 6 | 3 | 45 | 0.6 | 250# | 250-600# | ||||
| 7 | D6-d0.7-H5-L45-250# | 0.7 | 6 | 5 | 45 | 0.6 | 250# | 250-600# | ||||
| 8 | D6-d0.8-H3-L45-250# | 0.8 | 6 | 3 | 45 | 0.6 | 250# | 250-600# | ||||
| 9 | D6-d0.8-H5-L45-250# | 0.8 | 6 | 5 | 45 | 0.6 | 250# | 250-600# | ||||
| 10 | D6-d0.8-H8-L50-250# | 0.8 | 6 | 8 | 45 | 0.6 | 250# | 250-600# | ||||
| 11 | D6-d1-H3-L50-200# | 1 | 6 | 3 | 50 | 1 | 200# | 200-600# | ||||
| 12 | D6-d1-H4-L45-200# | 1 | 6 | 4 | 45 | 1 | 200# | 200-600# | ||||
| 13 | D6-d1-H5-L45-200# | 1 | 6 | 5 | 45 | 1 | 200# | 200-600# | ||||
| 14 | D6-d1-H8-L50-200# | 1 | 6 | 8.2 | 50 | 1 | 200# | 200-600# | ||||
| 15 | D6-d1.2-H3-L50-200# | 1.2 | 6 | 3 | 50 | 1 | 200# | 200-600# | ||||
| 16 | D6-d1.2-H5-L45-200# | 1.2 | 6 | 5 | 45 | 1 | 200# | 200-600# | ||||
| 17 | D6-d1.2-H8-L45-200# | 1.2 | 6 | 8 | 45 | 1 | 200# | 200-600# | ||||
| 18 | D6-d1.5-H6-L50-150# | 1.5 | 6 | 6 | 50 | 1.5 | 150# | 150-400# | ||||
| 19 | D6-d1.5-H8-L45-150# | 1.5. | 6 | 8 | 45 | 1.5 | 150# | 150-400# | ||||
| 20 | D6-d2-H6-L50-120# | 2 | 6 | 6 | 50 | 2 | 120# | 120-300# | ||||
| 21 | D6-d2-H8-L50-120# | 2 | 6 | 8 | 50 | 2 | 120# | 120-300# | ||||
| 22 | D6-d2.5-H6-L50-120# | 2.5 | 6 | 6 | 50 | 0.6 | 1.45 | 2.3 | 2.5 | 120# | 120-300# | |
| 23 | D6-d2.5-H8-L50-120# | 2.5 | 6 | 8 | 50 | 0.6 | 1.45 | 2.3 | 2.5 | 120# | 120-300# | |
| 24 | D6-d2.5-H10-L50-120# | 2.5 | 6 | 10 | 50 | 0.6 | 1.45 | 2.3 | 2.5 | 120# | 120-300# | |
| 25 | D6-d3-H10-L50-120# | 3 | 6 | 10 | 50 | 0.8 | 0.6 | 2.8 | 3 | 120# | 120-300# | |
| 26 | D6-d3-H12-L50-120# | 3 | 6 | 12 | 50 | 0.8 | 0.6 | 2.8 | 3 | 120# | 120-300# | |
| 27 | D6-d4-H10-L50-100# | 4 | 6 | 10 | 50 | 1.3 | 0.7 | 2.8 | 3 | 100# | 100-300# | |
| 28 | D6-d4-H12-L50-100# | 4 | 6 | 12 | 50 | 1.3 | 0.7 | 2.8 | 3 | 100# | 100-300# | |
| 29 | D6-d4-H15-L60-100# | 4 | 6 | 15 | 60 | 1.3 | 0.7 | 2.8 | 3 | 100# | 100-300# | |
| 30 | D6-d5-H10-L50-100# | 5 | 6 | 10 | 50 | 1.8 | 1 | 2.8 | 3 | 100# | 100-300# | |
| 31 | D6-d5-H12-L50-100# | 5 | 6 | 12 | 50 | 1.8 | 1 | 2.8 | 3 | 100# | 100-300# | |
| 32 | D6-d5-H15-L60-100# | 5 | 6 | 15 | 60 | 1.8 | 1 | 2.8 | 3 | 100# | 100-300# | |
| 33 | D6-d6-H12-L50-100# | 6 | 6 | 12 | 50 | 2.8 | 1 | 2.8 | 3 | 100# | 100-300# | |
| 34 | D6-d6-H15-L60-100# | 6 | 6 | 15 | 60 | 2.8 | 1 | 2.8 | 3 | 100# | 100-300# | |
| 35 | D6-d6-H20-L60-100# | 6 | 6 | 20 | 60 | 2.8 | 1 | 2.8 | 3 | 100# | 100-300# | |
